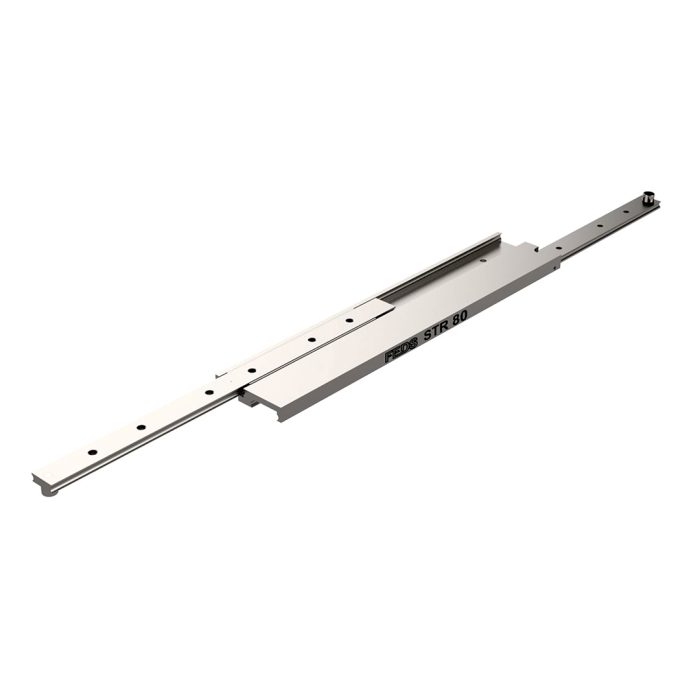

STR-80 | 60 – 300 Kg

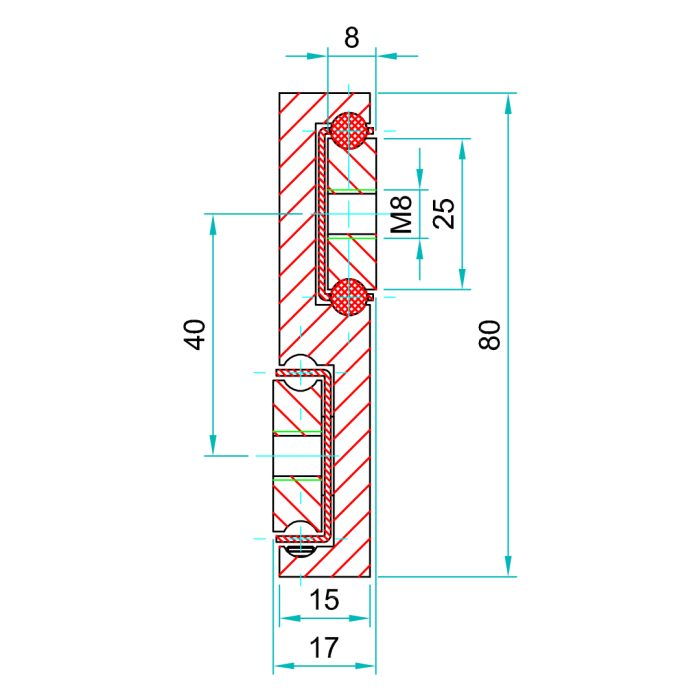

The Professional Range of telescopic slides offers substantially better value than other models of cold drawn steel slides, whilst using high quality materials and machined parts. The STR-80 telescopic slide (bigger brother to the STR-60), with a total slide width of only 17mm, will save space, weight and cost whilst still providing a substantial load capacity of up to 300Kg. Loading at 550mm is 300kg per extended pair. Constructed from cold drawn steel sections this caged ball bearing slider has a good level of resistance to shock and vibration when supporting a static load in the closed position, making an ideal drawer slide for the most demanding of applications such as on military/emergency vehicles or train battery boxes, where frame vibration and movement could damage lesser products. The STR-80 slider also has good resistance to applied loads when in the extended position making it an excellent choice for dynamic applications with high levels of torque. Additional product variations may be produced with alternative closed lengths, extensions, mounting systems, surface treatments, and ball bearings. The slides are manufactured from cold drawn steel C45E+C in accordance with EN 10277. Standard ball cages are manufactured from zinc plated sheet metal, and the ball bearings are carbon steel C85 G100 in accordance with DIN 5401. The beams are protected by a 12 micron layer of zinc passivate plate. A single STR-80 weighs 8.19 kg per metre.
