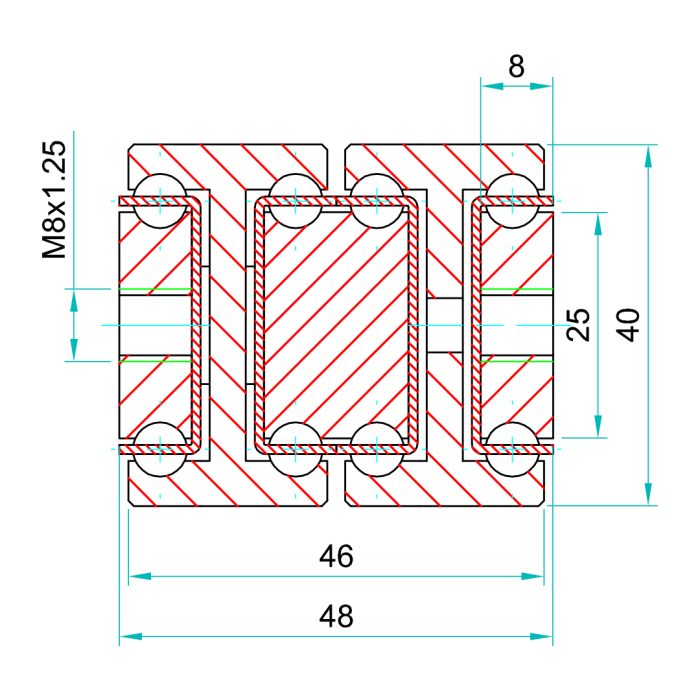

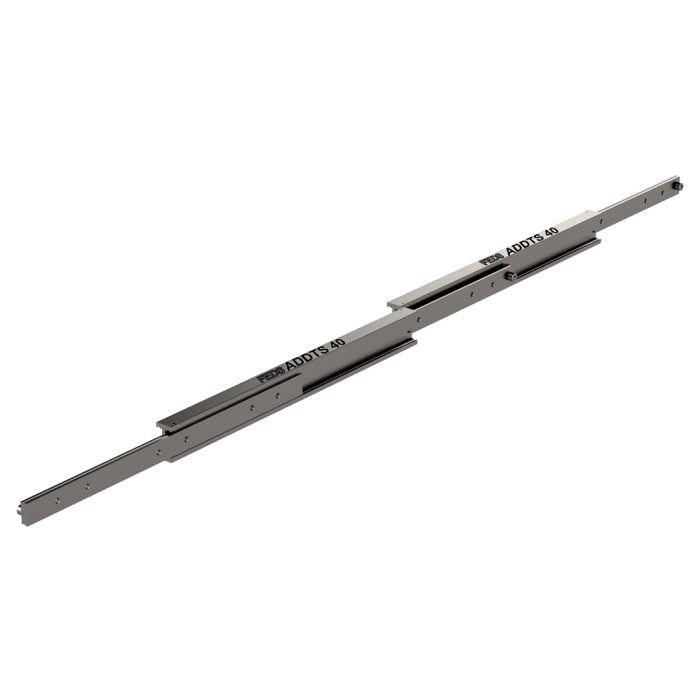

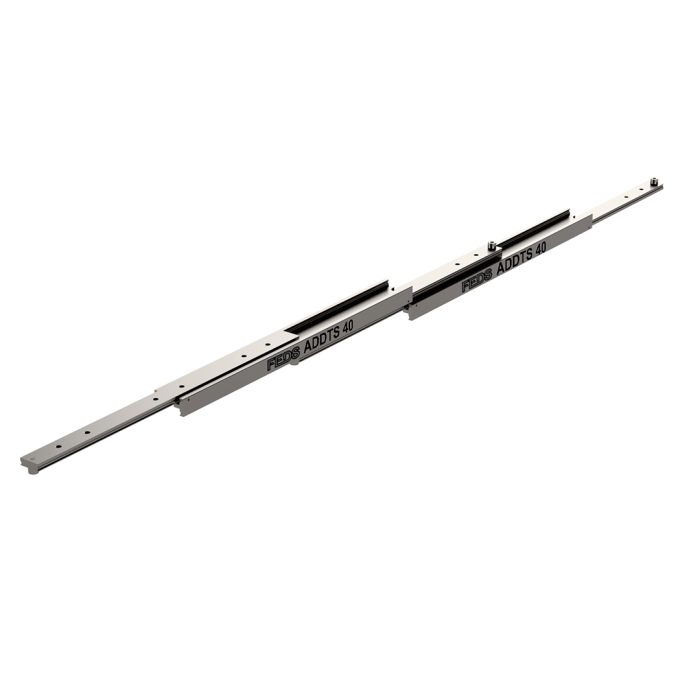

ADDTS-40 | 28 – 50 Kg

The Professional Range of super extension heavy duty slides manufactured from 6082 T6 aluminium and stainless bearings. Due to our standard manufacturing process of milling extruded beams, we can supply these slides in virtually any aluminium requested. Particularly suited to military and airborne applications where the right choice of materials affects performance. The ADDTS range of slides offer a super extension of 200% as standard. Utilising heavy duty 'I' beams the slide can maintain rigidity in demanding applications where the travel exceeds the closed length by a factor of two. The ADDTS-40 slide with a closed length of 500mm has a travel of 1000mm (1500mm overall) has a loading of 50kg per pair. Constructed from 5 aluminium sections this full action ball bearing slide has high precision and excellent level of resistance to shock and vibration when supporting a static load in the closed position. Accordingly, the slide is well suited to mounting on vehicles and trains. Constructed in the tried and tested I beam format, this telescopic slide offers a low overall slide height for its high load capacity. This slide also has good resistance to applied loads when in the extended position making it an excellent choice for dynamic applications subject to high loads and torque with minimal deflection. Additional variations may be produced with alternative closed lengths, extensions, mounting systems, surface treatments, and ball bearings. The ADDTS-40 is a high quality, smooth running, full extension slide with milled ball tracks for accuracy and a slight pre-load. The bearings, cages and end stops are stainless steel, providing a corrosion resistant slide. Supplied with a standard anodization, please consult our engineers for other surface finishes available. A single ADDTS-40 weighs 4.49kg per metre.
