SDDTS-60 | 35 – 120 Kg

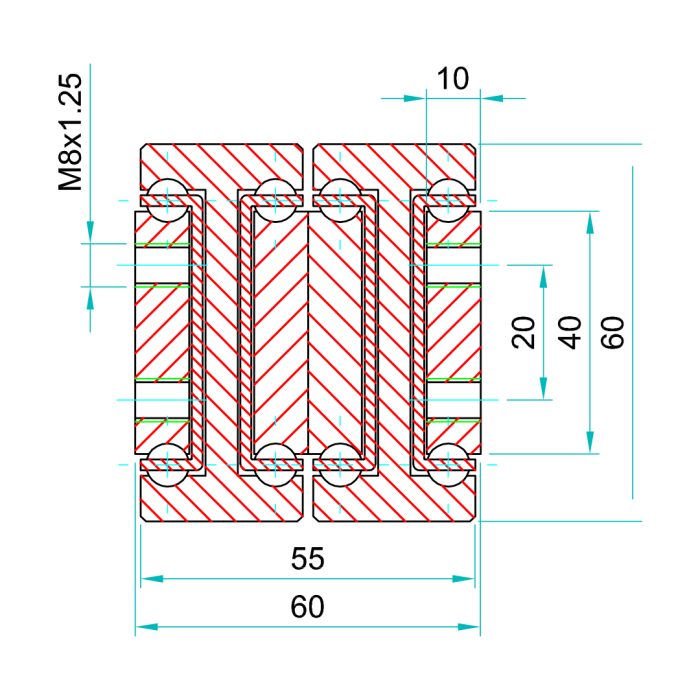

The SDDTS range of slides offer a super extension of 200% as standard. Utilising heavy duty 'I' beams the slide can maintain rigidity in demanding applications where the travel exceeds the closed length by a factor of two. The SDDTS-60 slide with a closed length of 550mm has a travel of 1100mm (1650mm overall) has a loading of 120kg per pair. Constructed from 5 stainless steel 316 L sections this full action ball bearing slide has high precision and excellent level of resistance to shock and vibration when supporting a static load in the closed position. Accordingly, the product is well suited to supporting military truck drawers, offshore stowage and ship-borne seating. The beams and ball bearings are manufactured from austenitic grade 316L. End stop bolts are grade 304 with cages made from ferritic grade 430 stainless, for complete corrosion protection. Due to the extreme strength of the mobile 'I' beam, this slide is robust to applied loads when in the extended position making it an excellent choice for dynamic applications. Unlike many other slides manufactured from rolled steel 'C' sections. There are no plastic parts in the manufacture of this range, making it ideal for extreme temperature use. Grade 316L is an austenitic stainless steel with a very low electro-magnetic signature, so ideal for defence applications. This slide also has good resistance to applied loads when in the extended position making it an excellent choice for dynamic applications subject to high loads and torque with minimal deflection. Additional variations may be produced with alternative closed lengths, extensions, mounting systems, surface treatments, and ball bearings. The slides are manufactured from milled stainless steel (inox) 316L. Standard ball cages are manufactured from stainless 316, and the ball bearings are 316L stainless steel. A single SDDTS-60 weighs 21.26 kg per metre.
