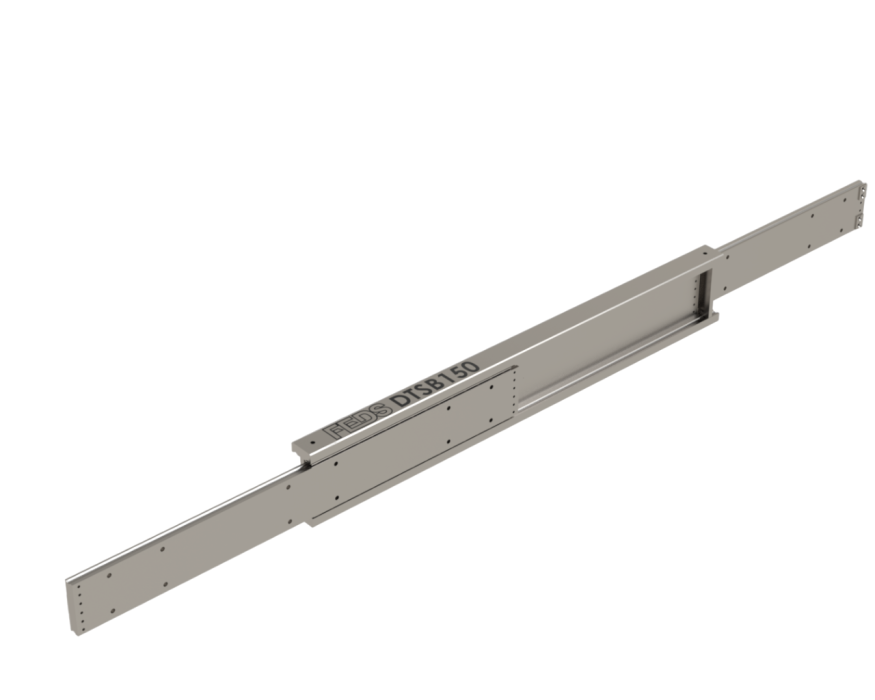

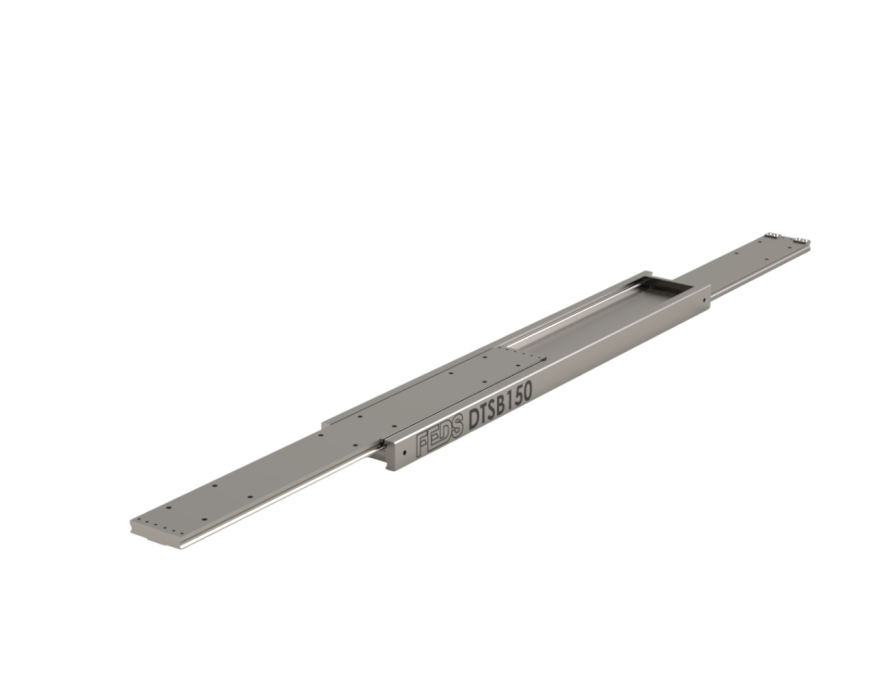

DTSB-150 | 380 – 2410 Kg

The DTSB-150 offers extreme total extension front and rear. This is made possible by an internal rocker device which releases each beam in sequence. Ideal for thru-truck drawers or train battery boxes where access from either side may be limited. This is a heavy load/duty full extension telescopic slide (380-2410kg/pair) suitable for a wide range of applications. At 850mm 1 pair has a full extension load capacity of 2410Kg. Constructed from cold drawn steel sections, with machined ball tracks for accuracy, it has excellent levels of shock and vibration resistance. Accordingly the product is well suited to supporting emergency truck pumps, train battery boxes and bi-directional machine guards. The beam release mechanism guarantees that one beam is held firm whilst the other travels. Unlike some systems where the load is pulled through the slide with ball cage misalignment and subsequent and jamming. Due to the extreme strength of the mobile 'I' beam, this slide is robust to applied loads when in the extended position making it an excellent choice for dynamic applications. Unlike many other slides manufactured from rolled steel 'C' sections. There are no plastic parts in the manufacture of this range, making it ideal for high temperature use. A single DTSB-150 weighs 33.42 kg per metre.
